899,00 $ + KDV
CCR1036-12G-4S is an carrier grade router with a cutting edge 36 core Tilera CPU! Unprecedented power and unbeatable performance - this is our new flagship device. Over 20 times faster than our previous top model, the Cloud Core supports throughput of up to 24 million packets per second, or up to 16 gigabits - full wire speed.

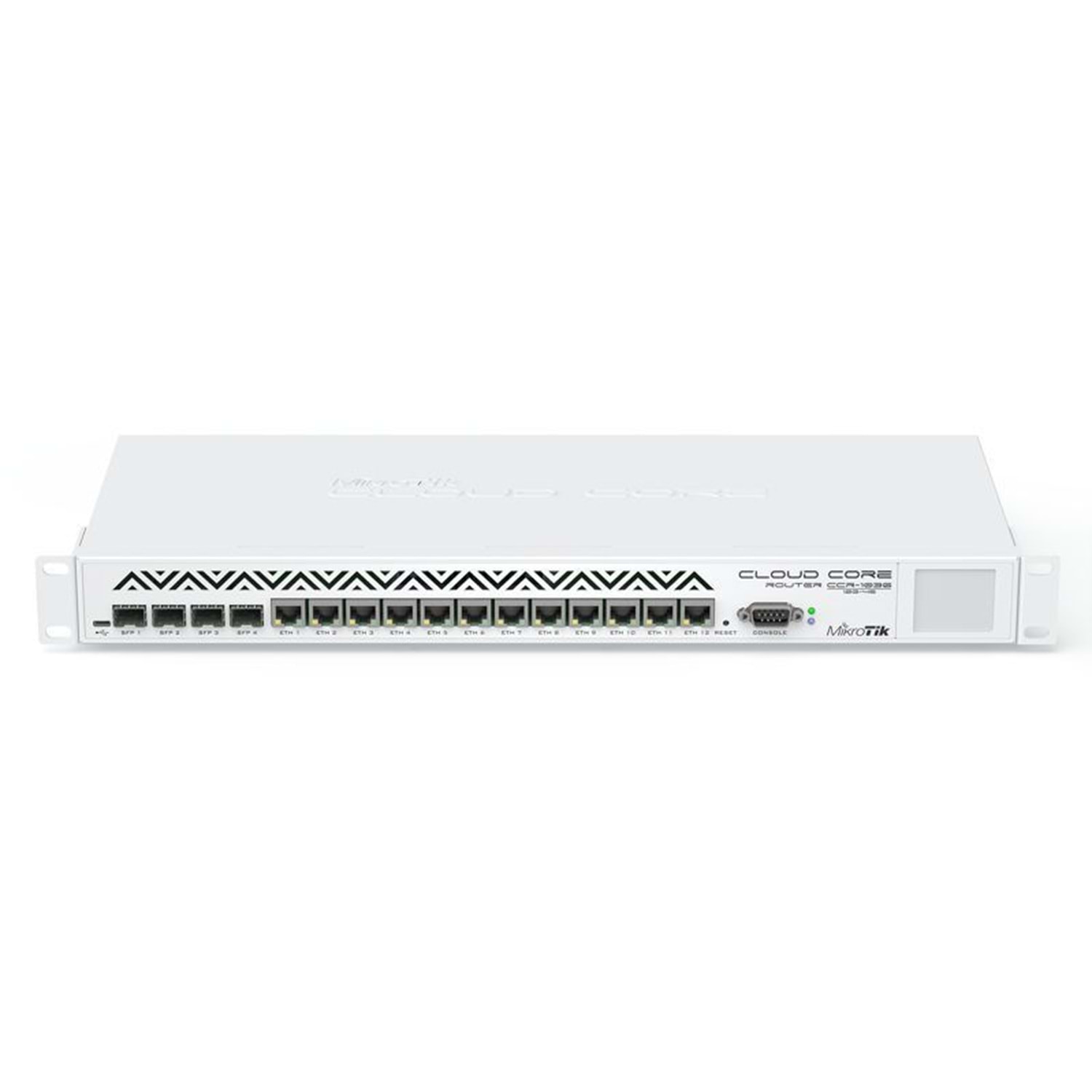

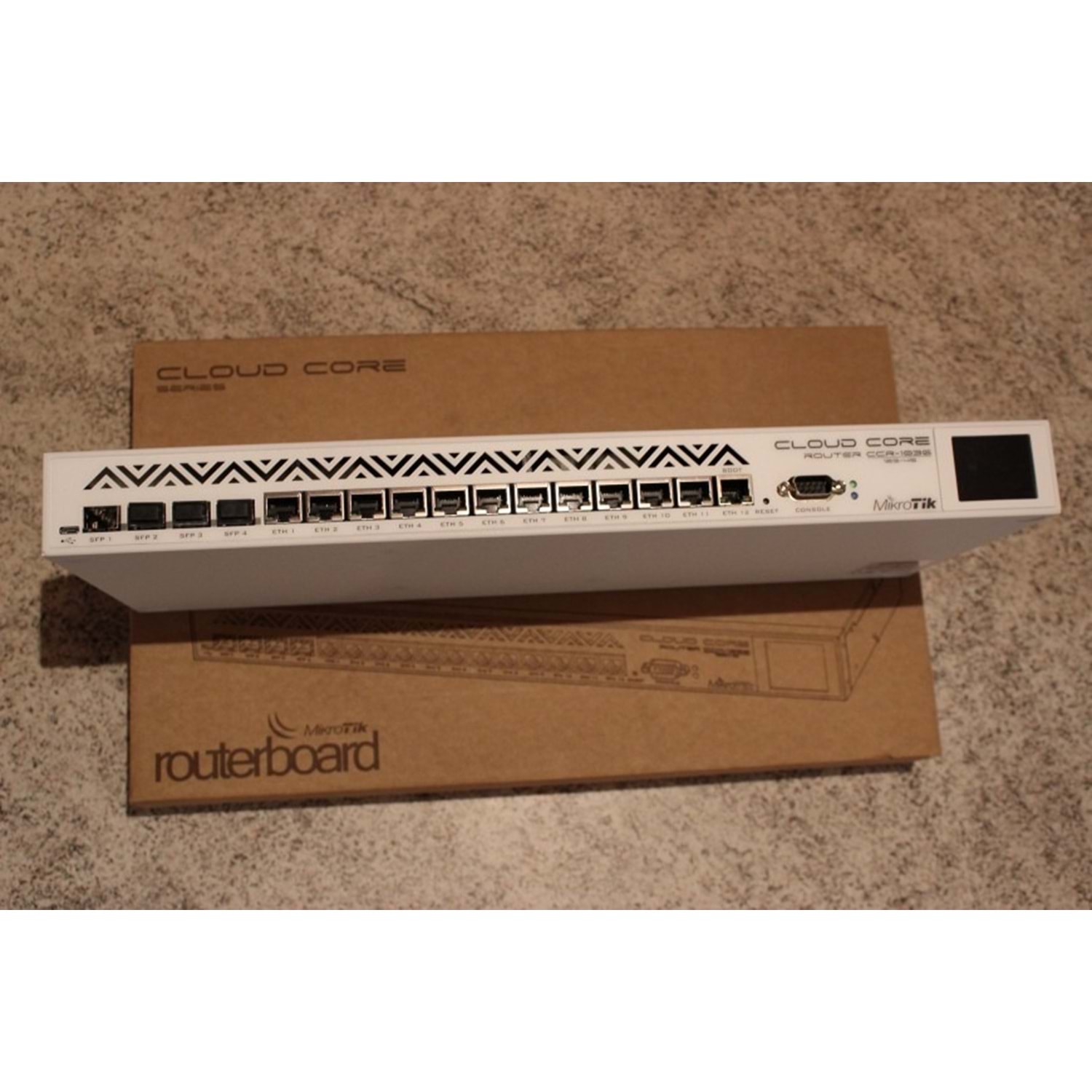

The device comes in a 1U rackmount case, has four SFP ports, twelve Gigabit ethernet ports, serial console and a USB port. A color touchscreen displays device status, traffic graphs, or provide access to simple configuration options.
It has two SODIMM slots, by default it is shipped with 4GB of RAM, but has no memory limit in RouterOS, so will accept and utilize 16GB or more. It comes with power supply and 1U rackmount case.
The cloud core router is powered by RouterOS, a fully featured routing operating system which has been continuously improved for fifteen years. Dynamic routing, hotspot, firewall, MPLS, VPN, advanced quality of service, load balancing and bonding, real-time configuration and monitoring - just a few of the vast number of features supported by RouterOS.
Tested and recommended to use with MikroTik SFP modules: S-85DLC05D, S-31DLC20D and S-35/53LC20D (not included)
See our product video:
See more information on: http://cloudcorerouter.com
|Power Jack||IEC C14 standard connector 110/220V (PSU included)|
|PCB temperature monitor||No|
|CPU temperature monitor||Yes|
|Operating System||RouterOS v6 (64bit)|
|Temperature range||Max ambient temperature 50C @1.2Ghz; 70C @1Ghz CPU core frequency|
|Max Power consumption||60W|
|Mode||Configuration||64 byte||512 byte||1518 byte|
|Bridging||none (fast path)||23808||15618.0||3759||15938.2||1300||15974.4|
|Bridging||25 Bridge filter rules||7340||4815.0||3759||15938.2||1300||15974.4|
|Routing||none (fast path)||23808||15618.0||3759||15938.2||1300||15974.4|
|Routing||25 Simple Queues||7919||5194.9||3759||15938.2||1300||15974.4|
|Routing||25 IP filter rules||3127||2051.3||2998||12711.5||1300||15974.4|
