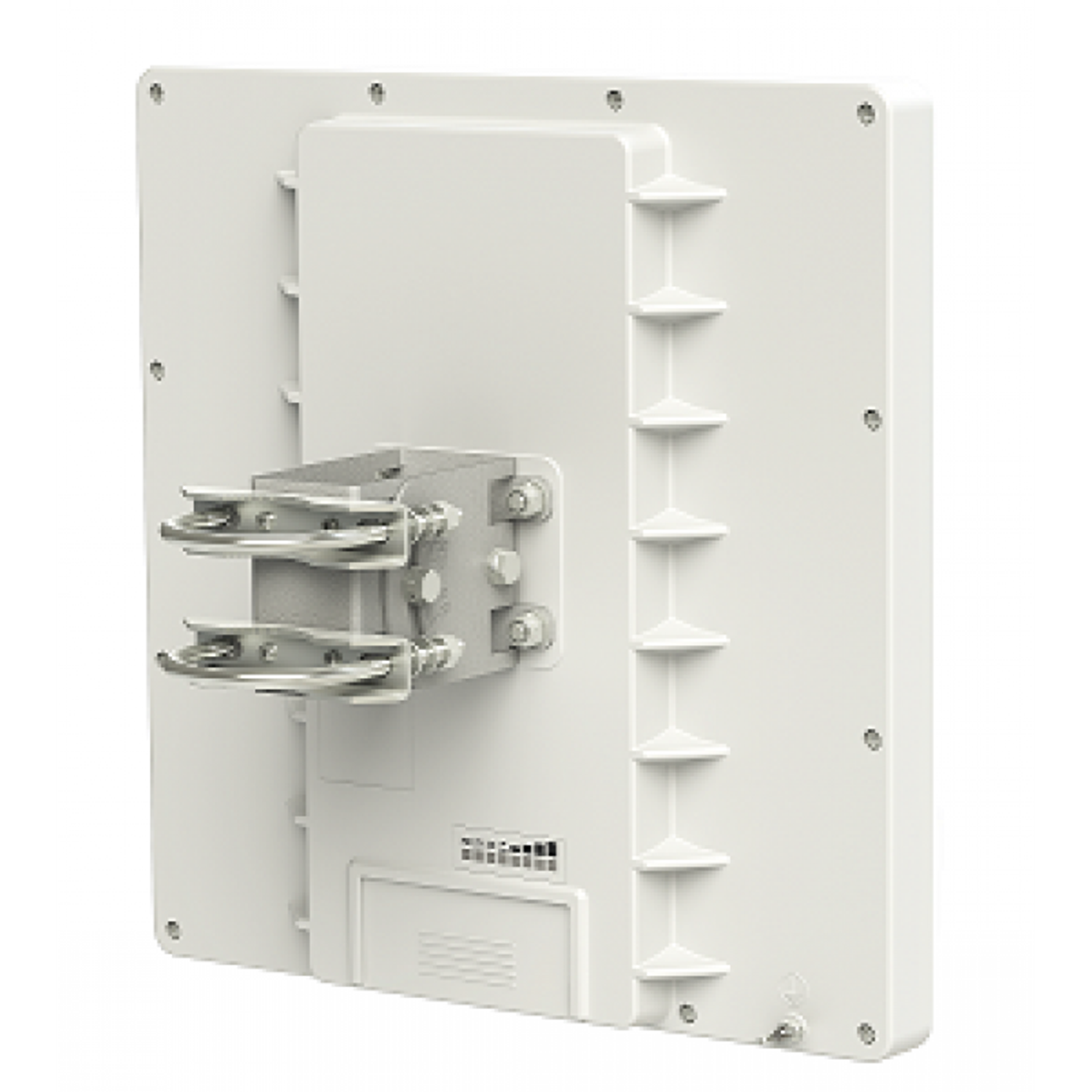

The QRT-2 is rugged outdoor flat panel antenna, with a built in RouterBOARD. The device has a 17dBi antenna and a super high power 2Ghz wireless transmitter.

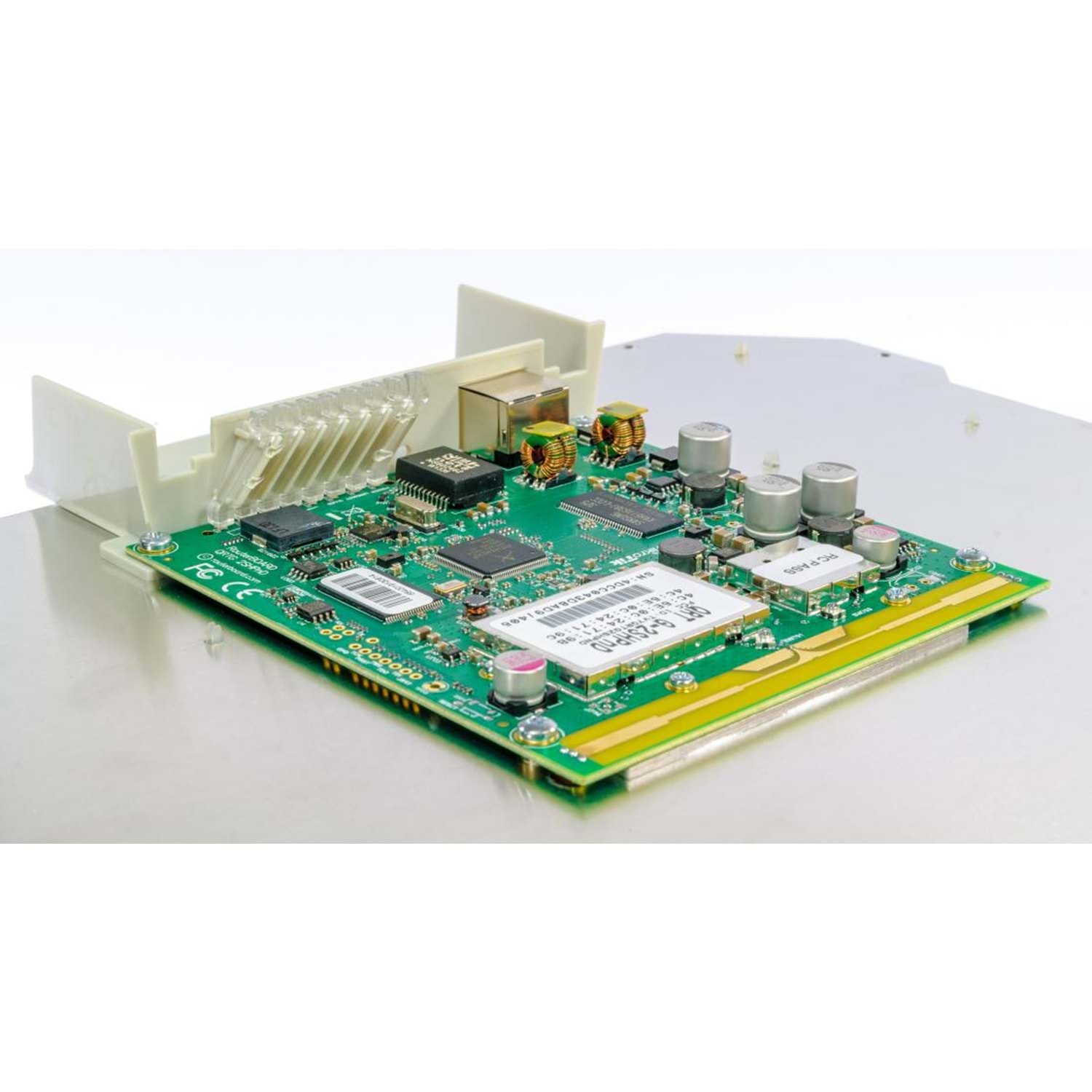

Inside is a new dual chain wireless device, with high performance, high output power wireless transmitter, and a Gigabit Ethernet port, to fully utilize the benefit of 802.11n high speed wireless.
Easy to use and quick to deploy, QRT is ideal for point-to-point links.
Product specifications
Details |
Product code | RBQRTG-2SHPnD |
CPU nominal frequency | 400 MHz |
CPU core count | 1 |
Size of RAM | 64 MB |
10/100 Ethernet ports | 0 |
10/100/1000 Ethernet ports | 1 |
MiniPCI slots | 0 |
MiniPCI-e slots | 0 |
Wireless chip model | AR9582-AR1A |
Wireless standards | 802.11b/g/n |
Number of USB ports | 0 |
PoE | Yes |
Voltage Monitor | Yes |
CPU temperature monitor | No |
PCB temperature monitor | Yes |
Dimensions | 250x90mm |
Operating System | RouterOS |
License level | L4 |
Antenna gain DBI | 17dBi |
Current Monitor | No |
TX power | 35dBm |
CPU | AR7242-AH1A |
Max Power consumption | 19W at 24V |
SFP ports | 0 |
Number of chains | 2 |
