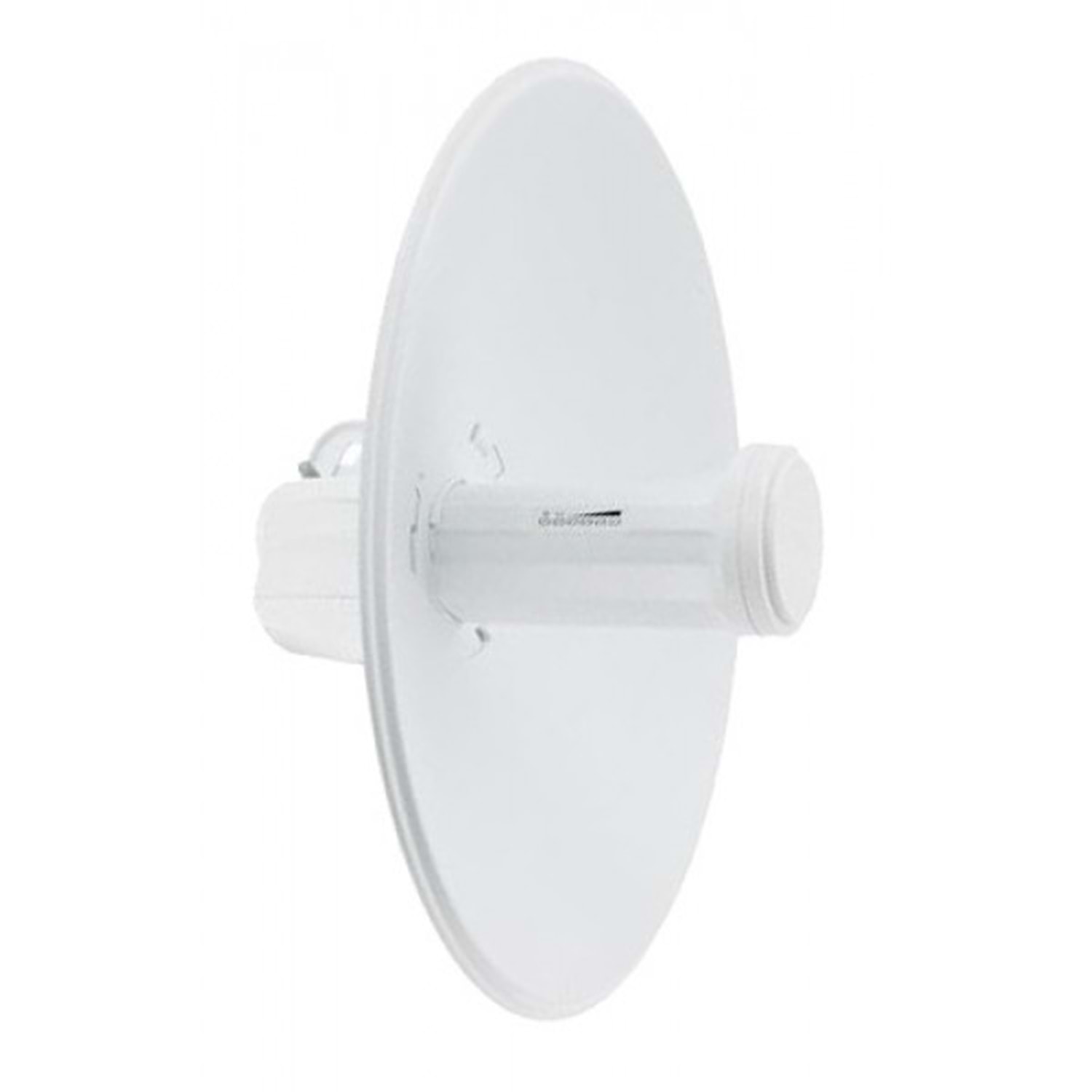

Whatsapp ile SiparişThe new NanoBeam M has a compact, all-in-one design with uniform beam width, efficient footprint and a faster processor. The NanoBeam can be easily mounted in a variety of ways thanks to the innovative mechanical design.
Innovative Mechanical Design
? Built-in mechanical tilt The mounting bracket
conveniently offers 20° of uptilt and up to 20° of
downtilt.
? Quick assembly The number of fasteners was reduced
to simplify assembly. Tools are required only when the
technician mounts the NanoBeam on thepole.

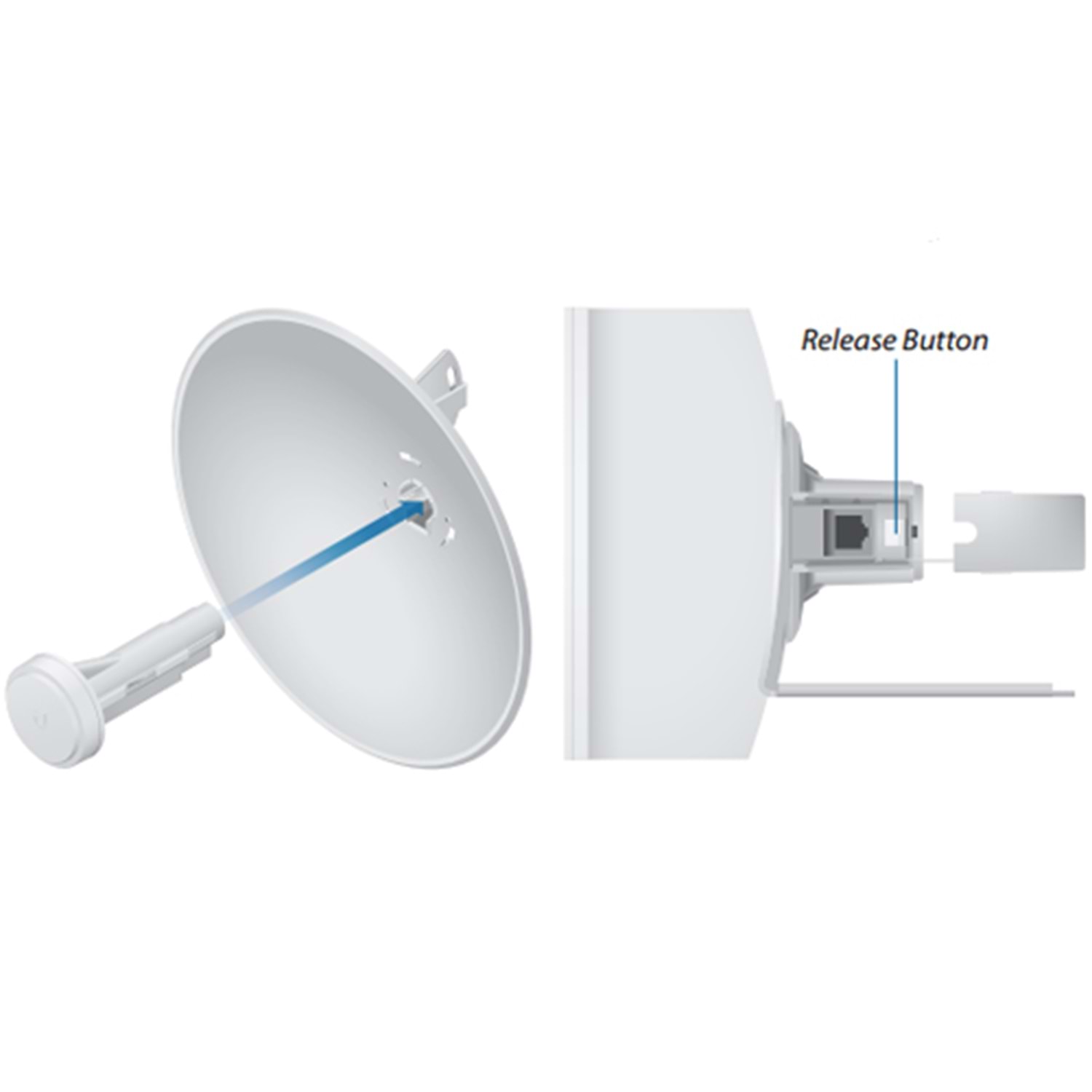

? Easy removal The antenna feed can be detached with
thepush of a buton.
? Corrosion Resistance
more info-NanoBeam_Datasheet
Specifications
| SystemInformation | |
| Model | NBE-M5-400 |
| ProcessorSpecs | AtherosMIPS74KC,560MHz |
| Memory | 64MBDDR2,8MBFlash |
| NetworkingInterface | (1)10/100/1000EthernetPort |
| Regulatory/ComplianceInformation | |
| Model | NBE-M5-400 |
| WirelessApprovals | FCC,IC,CE |
| RoHSCompliance | Yes |
| Physical/Electrical/Environmental | |
| Model | NBE-M5-400 |
| Dimensions(mm) | 420x420x275 |
| Weight | 1.753kg |
| PowerSupply | 24V,0.5AGigEPoE |
|
PowerMethod | PassivePoE (Pairs4,5+;7,8Return) |
| Max.PowerConsumption | 8W |
| Gain | 25dBi |
| WindLoading | 77lbf@125mph |
| WindSurvivability | 125mph |
| LEDs | (1)Power,(1)LAN,(4)WLAN |
| SignalStrengthLEDs | Software-AdjustabletoCorrespondtoCustomRSSILevels |
| ChannelSizes | 5/8/10/20/30/40MHz |
| Polarization | DualLinear |
| Enclosure | OutdoorUVStabilizedPlastic |
| Mounting | Pole-MountKitIncluded |
| ESD/EMPProtection | Air:±24kV,Contact:±24kV |
| OperatingTemperature | -40to70°C |
| OperatingHumidity | 5to95%Non-Condensing |
| Shock&Vibration | ETSI300-019-1.4 |
| OperatingFrequencySummary(MHz) | |
| Model | NBE-M5-400 |
| Worldwide | 5170-5875 |
| USA | 5725-5850 |
