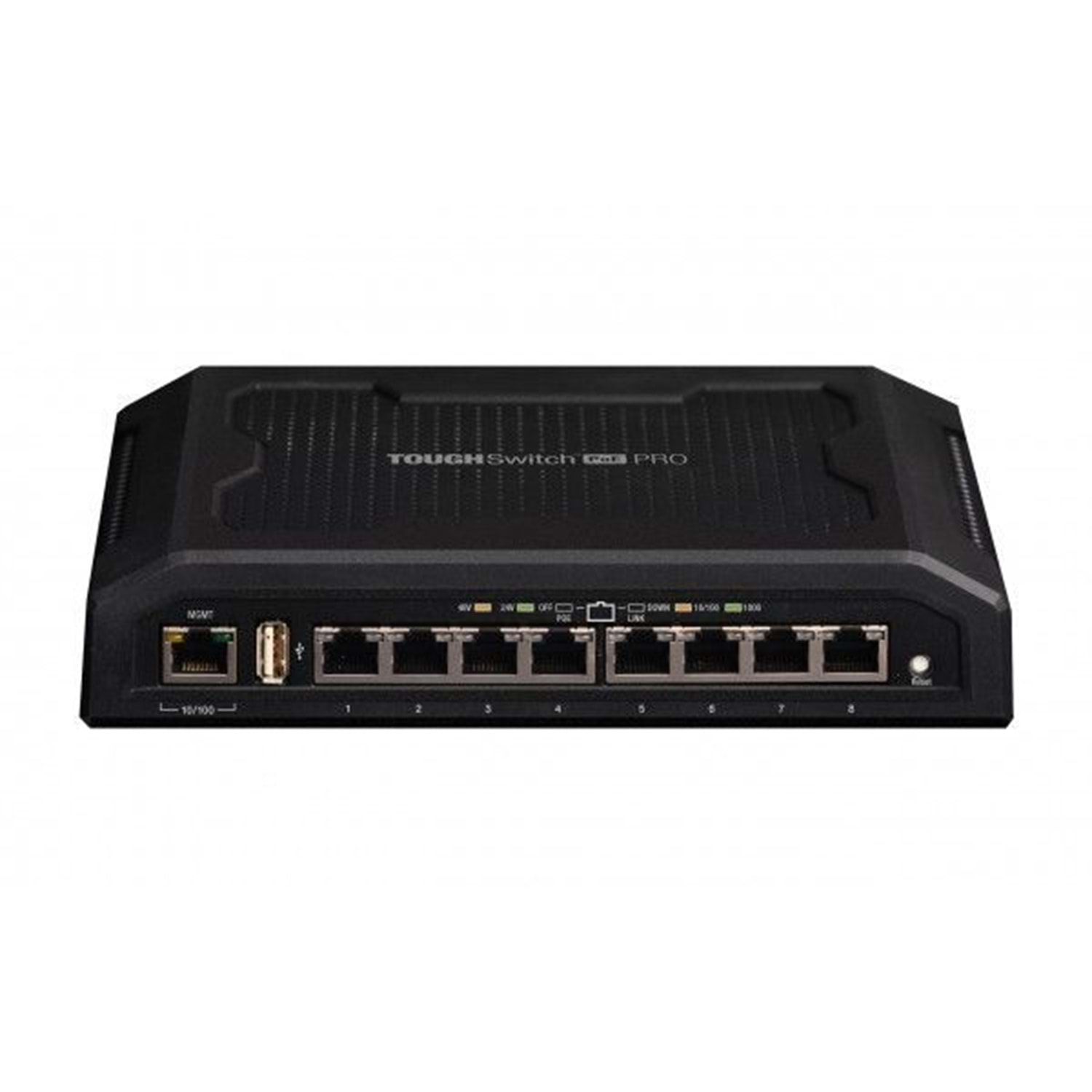

UBIQUITI UBNT TOUGHSwitch PoE PRO 8-Port
Gigabit Ethernet performance combined with Industrial strength construction and a 150Watt power supply. The TOUGHSwitch PRO version is capable of powering up to eight 24V or 48V devices with software selectable output voltage control. It is the ideal PoE solution for use with Ubiquiti airMAX base station deployments.
TOUGHSwitch_UserGuide
TOUGHSwitchPoEPRO |
Dimensions | 210x185x41mm |
Weight | 1.24kg |
PowerInput | 110-120VAC/210-230VAC |
Max.PowerConsumption | 150W |
PoEOutVoltageRange | 45-48VDC/22-24VDC |
Max.PoEWattagePerDataPort | 18W |
ESDRating | 24kVAir/24kVContact |
PoEMethod | Passive |
Button | Reset |
USBPort | 2.0TypeA(ReservedforFutureUse) |
Processor | MIPS24K400MHz |
SystemMemory | 64MB |
CodeStorage | 8MB |
Certifications | CE,FCC,IC |
OperatingTemperature | -25to55°C(-13to131°F) |
OperatingHumidity | 90%Non-Condensing |
PoEConfigurablePerPort |
ManagementPort | N/A |
DataPorts | Off/24V/48V |
LEDsPerPort |
ManagementPort | Power/Link/Activity |
DataPorts | PoE,Speed/Link/Activity |
NetworkingInterfaces |
ManagementPort | (1)10/100EthernetPort |
DataPorts | (8)10/100/1000EthernetPorts |
