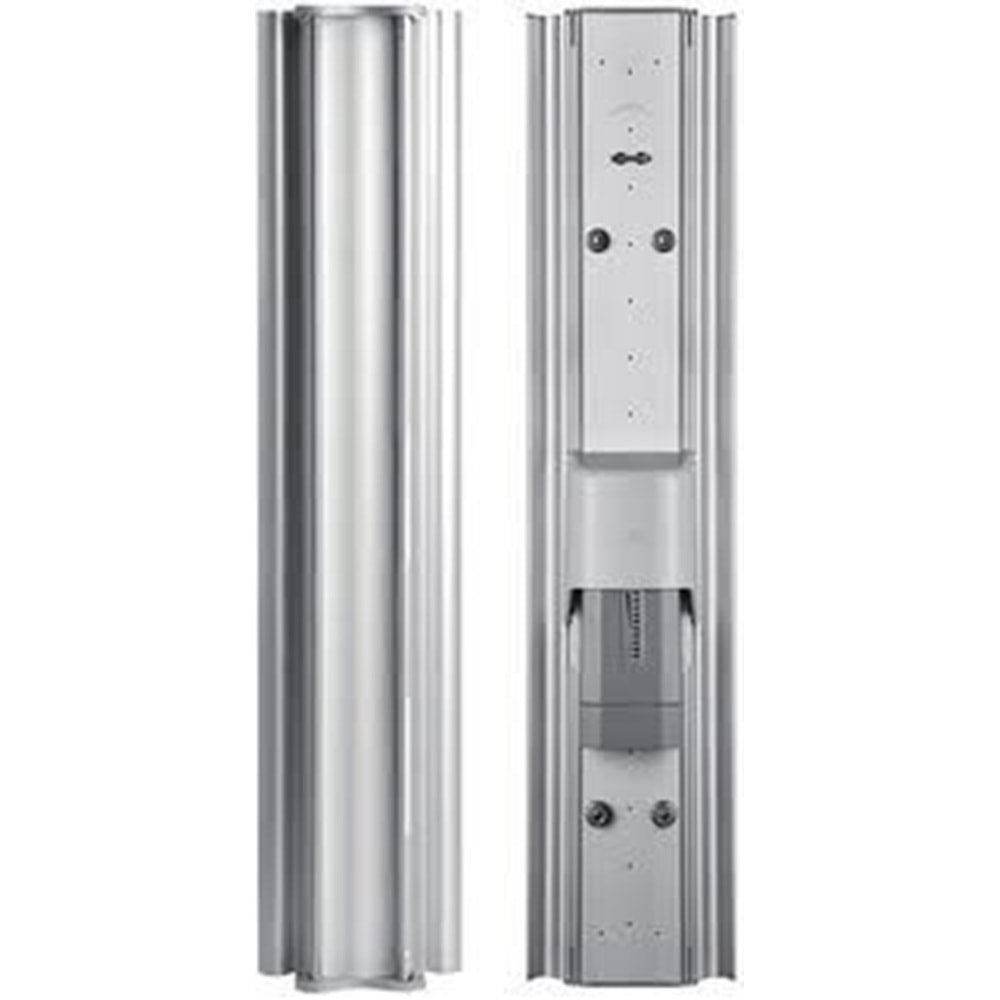

UBIQUITI UBNT AIRMAX TITANIUM AM-V5G-TI 60-120 Sector Anten
Model: AM-V5G-Ti
Dimensions 721 x 149.1 x 75.7 mm
Weight 3.72 kg (with Brackets)
Frequency Range 5.45 ? 5.85 GHz
Beamwidth Angles 60?/ 90?/ 120?
Gain (Beamwidth Dependent) 21 dBi @ 60?
20 dBi @ 90?
19 dBi @ 120?
Electrical Downtilt 2?
Wind Survivability 160 mph
Wind Loading 37 lbs @ 120 mph
Polarization Dual Linear
Cross-Pol Isolation 25 dB Typical
Front-to-Back Ratio 30 dB
Max. VSWR 1.5:1
RF Connectors 2 SMA Connectors (Weatherproof )
Compatible Radios RocketM5 Titanium
RocketM5 GPS
RocketM5
Mounting Pole Mount (Kit Included)
ETSI Specification EN 302 326 DN2
Certifications CE, FCC, IC
